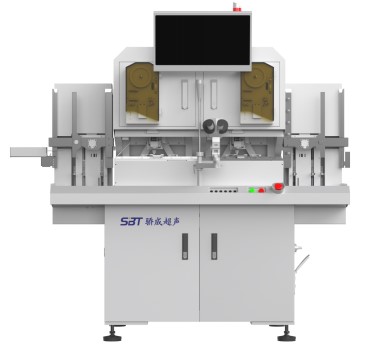

SBT Dual-head Aluminium Wire Wedge Bonder
- 0.5 μm resolution linear motor
- GBS helps shorten the replacement time of cutting tools and other consumables, ensuring consistency
- ALC function
- Aluminum strip bond head is optional
- Online non-destructive testing Pull Tester is optional
| Specification | Value |
|---|---|
| Dimensions | 1880mm (L) × 1145mm (W) × 1710mm (H) |
| Weight | 1200 kg |
| Bonding Area | 50mm × 80mm |
| Wire Handling | 100–500μm (4–20mil) |
| Lead Frame | 170–300mm (L), 20–110mm (W), 50–200mm (H) |
| NDPT (Non-Destructive Pull Test) | 15–100g (±2g), 100–200g (±3g), 200–300g (±5g) |
| Power Requirements | 180–240V AC, 50/60Hz |
