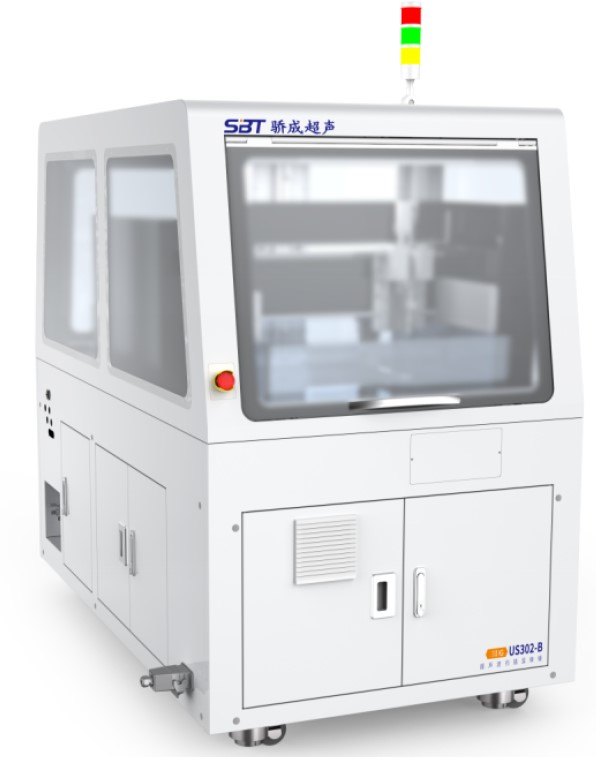

SBT SAM IG-US302-B
- Customizable Jig
- Quick Changeover: rapid sample replacement

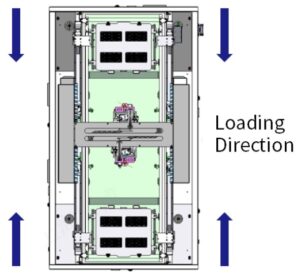

- Automated Feeding: both sides of jig can be loaded into water tank manually or automatically
- Hands-Free Dipping: automatic lifter immerses objects in water
- Bubble-Free Scanning: Jig employs tilted water inlet design to prevent water bubbles from interfering with scanning process
- High-speed Inspection System: synchronous scanning with 2 transducers, displaying real-time scan images
- Transmisssion module: C-scan and T-scan ready
| Dimension of Machine | 970mm (W) x 1800mm(D) x 1550mm (H) | |
| Dimension of Water Tank | 650mm x 1500mm x 150mm (Customizable) | |
| Scanning Range | 400mm x 320mm (Customizable) | |
| Maximum Scanning Speed | 2000mm/s , adjustable | |
| Transducers | Two Transducers from 1 ~ 230MHz |
